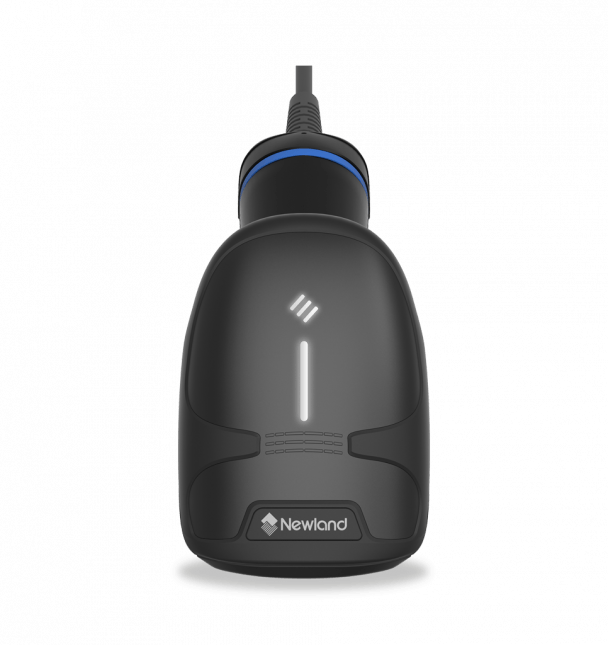

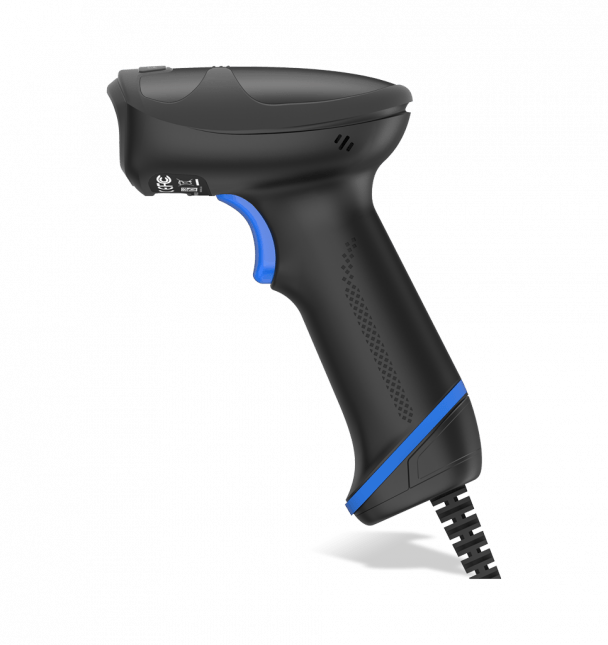

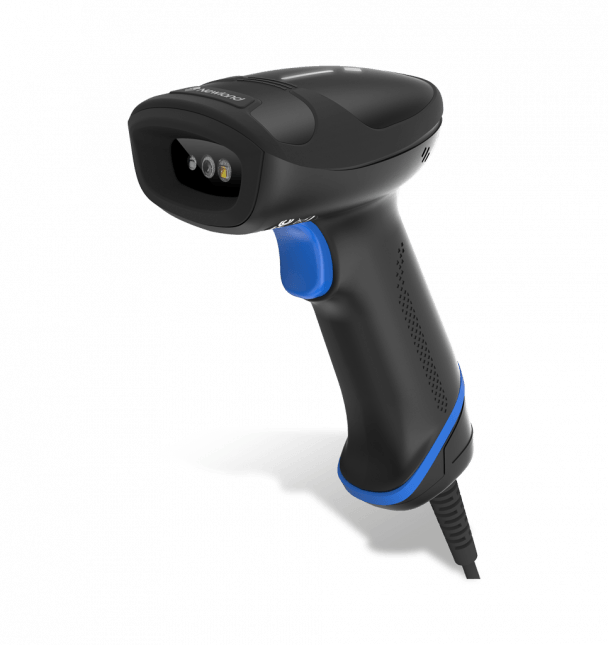

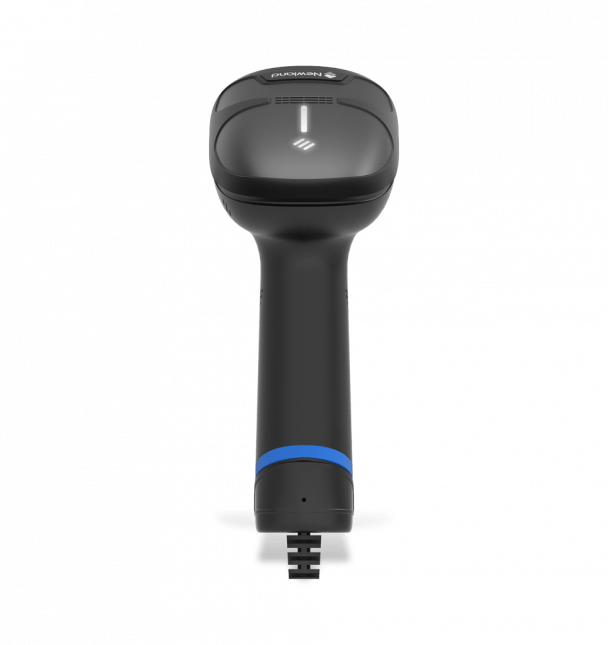

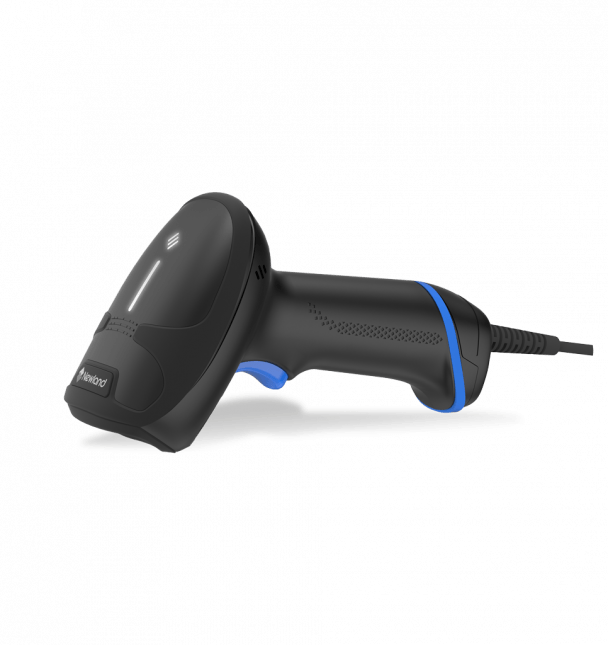

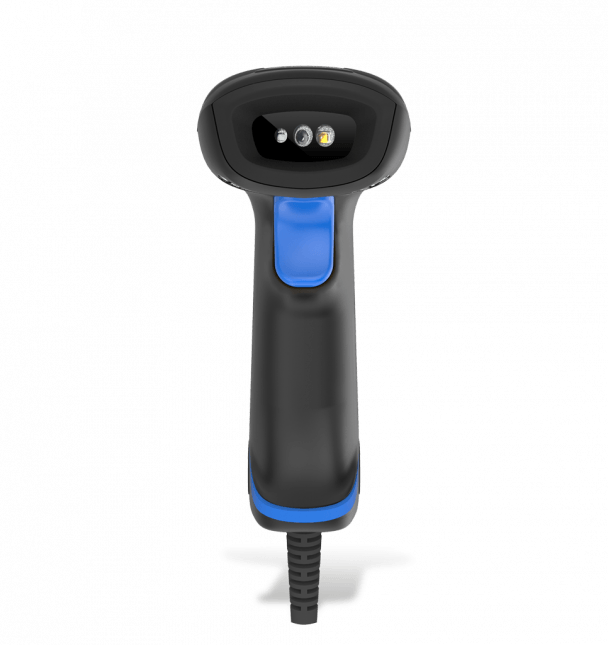

HR33 Marlin
Description
The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.
Technical features
| Data capture: | |
| 1D: | Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K. |
| 2D: | PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One |
| OCR: | Passport OCR, Chinese ID Card, China Travel Permit OCR |
| Image sensor: | 1280×800 CMOS |
| Aiming: | Cross laser |
| Illumination: | White LED |
| Resolution: | ≥3mil |
| Depth of Field EAN 13 (13mil): | 40mm-535mm |
| Depth of Field Code 39 (5mil): | 50mm-230mm |
| Depth of Field PDF417 (6.7mil): | 45mm-215mm |
| Depth of Field DataMatrix (10mil): | 30mm-245mm |
| Field of view: | Horizontal: 48° Vertical: 30° |
| Scanning angle: | Roll 360° – Pitch ±60° – Skew ±60° |
| Minimal Print Contrast: | 15% |
Environment
| Operating temperature: | -20°C to 60°C (-4°F to 140°F) |
| Storage temperature: | -40 to 70°C (-40°F to 158°F) |
| Humidity: | 5%~95% (non-condensing) |
| Elektrostatic discharge (ESD): | ±8 KV (direct discharge); ±15 KV (air discharge) |
| Drop: | 1.5m drops to concrete |
| IP rating: | IP52 |
Physical characteristics
| Current @5VDC Operating/Standby: | Operating 281mA max, 129mA Standby |
| Dimensions (mm): | 95 × 68 × 166 mm |
| Input voltage: | 5V DC±5% |
| Interfaces: | USB, RS232 |
| Notifications: | Beep, LED, vibration |
| Weight: | 140g |
Certificates
| Hardware: | CE, FCC, RoHS 2.0, IEC62471, IEC60825 |
Additional accessories
| Standart: | USB cable |
| Optional: | Smart stand |
