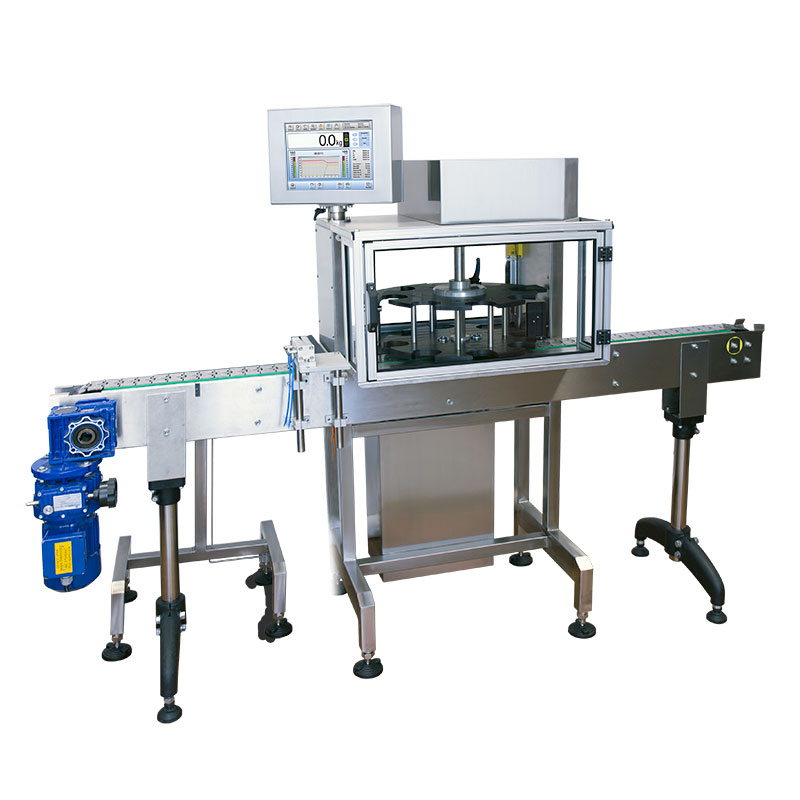

DWR 1500 H1 Checkweigher
Description
Automatic rotational scales are designed for operation in technological lines that produce cylindrical packaged goods, such as aerosols, sprays, glass and plastic bottles, etc.
The control unit is based on Windows Embedded software and an SQL database server. The industrial computer is designed to operate in demanding industrial conditions. Its cooperation with a specially prepared Windows platform makes the system stable and allows for holding set parameters. The graphic and touch-screen communication panel makes operation very easy and intuitive, which users have already appreciated.
The rotational device, not equipped with its own conveyor belt, is mounted over an existing one, significantly shortening and simplifying its installation. The pneumatically powered scale is designed for high durability and reliability, instilling a sense of trust in its operation.
Application:
Rotational scales, like aerosols, control cylindrically shaped single packages with 35- 66mm* diameters. The system operates under the regulation on the Control of Prepacked Goods.
Technical features
Maximum capacity [Max]: | 1500 – 7500 g |
Readability [d]: | 0.5 – 5 g |
Tare range: | -1500 – -7500 g |
Display: | 12” graphic colour touchscreen |
Operating pressure: | 6 – 8 bar |
Protection class: | IP 55, IP 65 |
Operating temperature: | 0 — +40 °C |
Air consumption: | 1 liter/measurement |
Capacity: | max 80 pcs/min |
