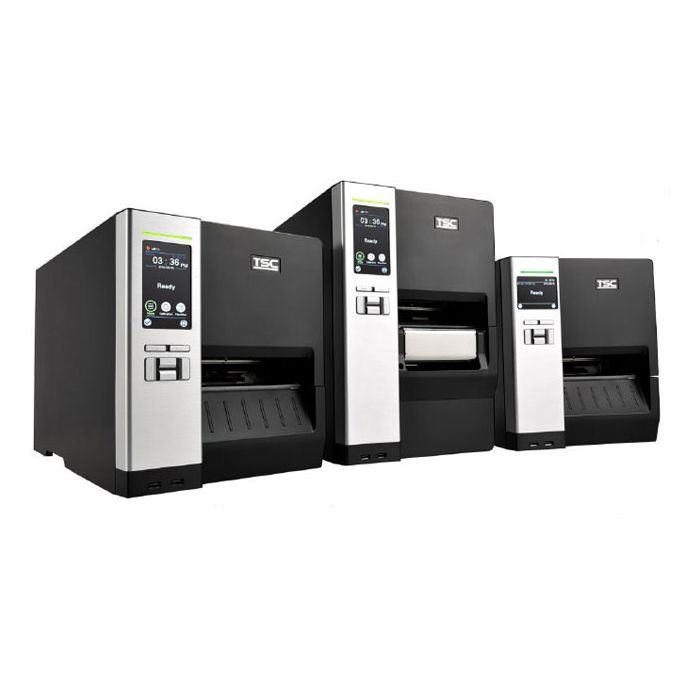

TSC MH240 Series Serial Label Printers

Description

TSC MH240 Series A wide range of label printers with various modifications and accessories. “Thermal Smart Control printing technology produces cleaner, high-quality barcodes. With print speeds up to 356 mm, its robust design and performance will satisfy the most demanding users.

Printing

  • Print method: Direct thermal print, thermal transfer
  • Resolution: 203, 300 or 600 DPI
  • Max. print speed: 356.0 mm/s
  • Max. print width: 104.0 mm

Sticker

  • Min. label width: 25.4 mm
  • Max. label width: 114.3 mm
  • Min. label length: 5.0 mm
  • Max. label length: 25400.0 mm
  • Max. label roll diameter: 203.2 mm
  • Max. ribbon length: 600.0 m
  • Ribbon winding direction: IN, OUT

Memory

  • 512 MB Flash memory
  • 256 MB SDRAM
  • microSD Flash memory card reader for Flash memory expansion, up to 32 GB

Connection

  • RS-232
  • USB 2.0
  • Internal Ethernet, 10/100 Mbps
  • USB host * 2, for scanner or PC keyboard
  • GPIO + Centronics (factory option)
  • Bluetooth (factory option)
  • Slot-in 802.11 a/b/g/n wireless (dealer option)

Software

  • BarTender
  • Supported printing languages – TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Environment

  • Operation: 5 ~ 40°C, 25 ~ 85% non-condensing

Physical characteristics

  • Weight: 15 to 18kg.

Available configurations

  • MH240
  • MH240T
  • MH240P
  • MH340
  • MH340T
  • MH340P
  • MH640
  • MH640T
  • MH640P

Additional accessories

  • Sticker peeler
  • Cutter
  • KP-200 Plus keyboard display
  • KU-007 Plus programmable intelligent keyboard
  • Bluetooth module
  • WiFi module
