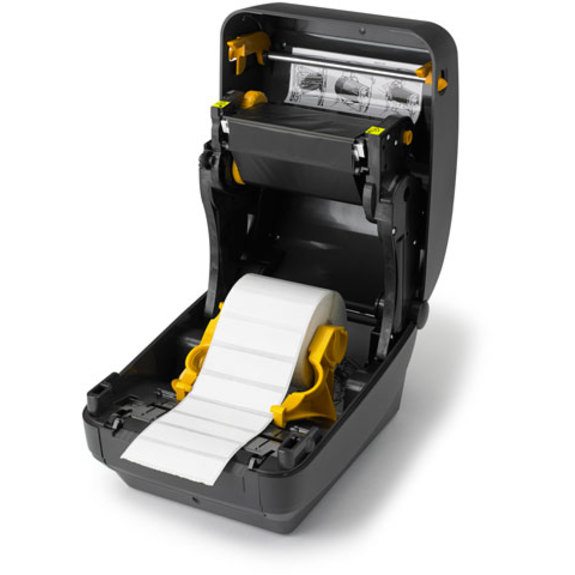

ZEBRA ZD500R Serial Label Printers
Description
Offering high-resolution print quality and quad connectivity, the ZD500 is compact and feature-rich for the best performance. A Link-OS and RFID-enabled printer, it is easy to integrate, manage and maintain from anywhere. Operates in direct thermal or heat transfer mode.
Printing
- Print method: Thermal transfer/Direct thermal print
- Resolution: 203/300 DPI
- Max. print speed: 152.0 mm/s
- Max. print width: 104.0 mm
Sticker
- Min. label width: 33.8 mm
- Max. label width: 109.2 mm
- Min. label length: 12.7 mm
- Max. label length: 990.0 mm
- Max. label roll diameter: 127.0 mm
Memory
- 256MB Flash, 128MB SDRAM
Connection
- LPT, RS232, USB, Ethernet, Bluetooth, Wi-Fi
Software
- ZebraDesigner
- Supported printing languages – EPL2, XML, ZBI, ZPL II
Environment
- Temperature: +4.4°C – +41°C
- Humidity resistance: 5% -95%
Physical characteristics
- Size: 193 x 191 x 254 mm
- Weight: 2.2 kg
Available configurations
- ZD500R , 8 dots/mm (203 dpi)
Optionally:
- ZD500R RFID (UHF) Desktop Printer, Direct Thermal/Thermal Transfer, 104mm (4″) width, 8 d/mm (203 dpi) with Dispenser (Peeler).
- ZD500R RFID (UHF) Desktop Printer, Direct Thermal/Thermal Transfer, 104mm (4″) width, 12 d/mm (300 dpi)
- ZD500R RFID (UHF) Desktop Printer, Direct Thermal/Thermal Transfer, 104mm (4″) width, 12 d/mm (300 dpi) with Dispenser (Peeler)
- ZD500R RFID (UHF) Desktop Printer, Direct Thermal/Thermal Transfer, 104mm (4″) width, 12 d/mm (300 dpi) with Cutter – Liner and Tag.
Additional accessories
- Label feeder
- Label cutter
- ZBI 2 command language support
