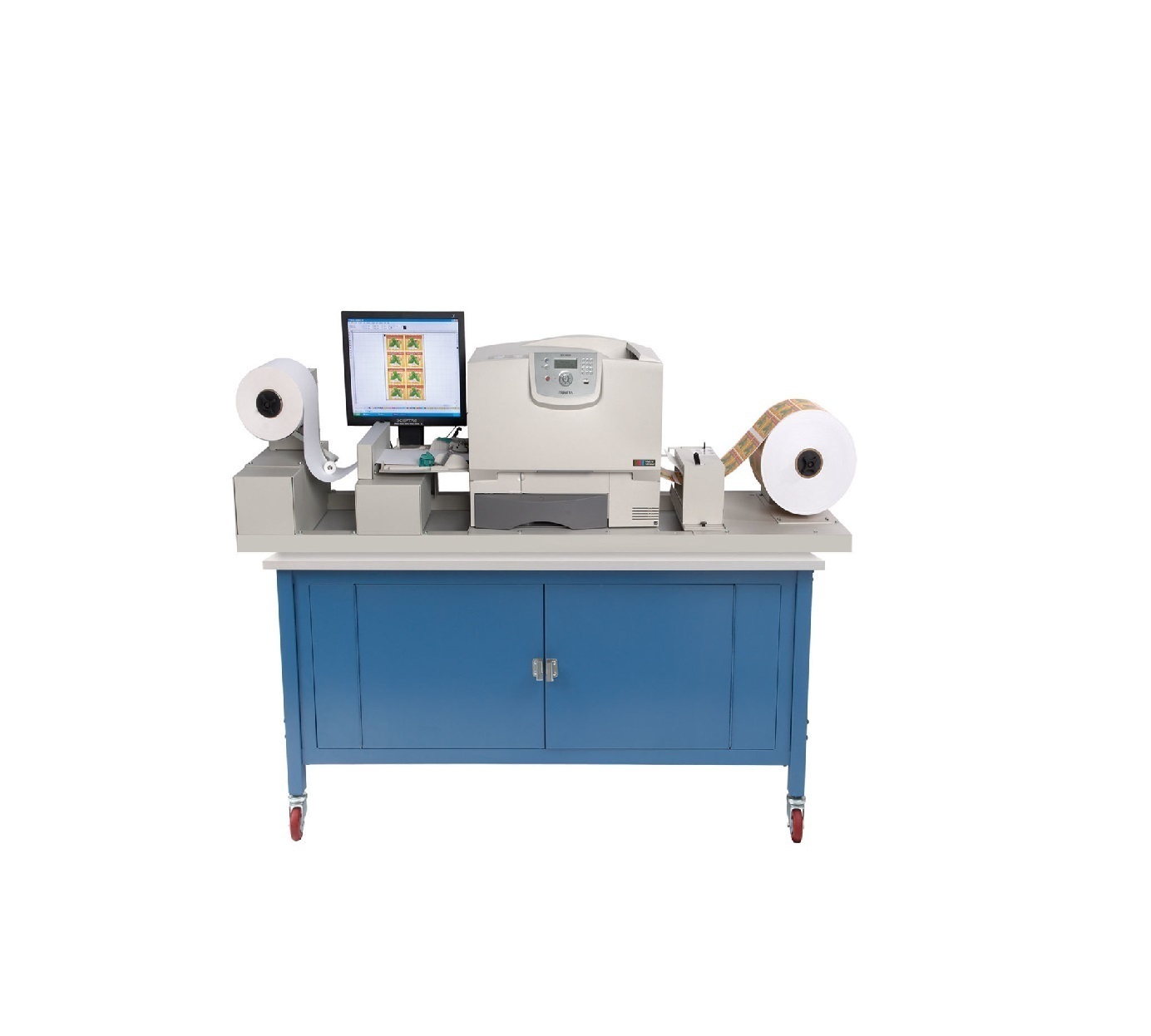

Primera CX1200e
Description
Earn more with the reliable and affordable Primera CX1200e digital label press.
Digital colour label printing offers many advantages. However, until now, digital label presses have required a significant investment in both money and time. The industry needed a more straightforward and cost-effective solution.
That’s why Primera created the new CX1200e digital label press. The CX1200e provides all the essential features of more expensive digital label presses at a minimal cost.
Ideal material unwinding
Primera’s exclusive IntelliTorque™ tension control system provides continuous tension control. This system applies the necessary torque to the appropriate parts of the system as needed. Thanks to this system, you will get perfectly rolled sticker rolls after every printing. IntelliTorque is unmatched in the digital label press category.
Excellent print quality
The CX1200e uses one of the fastest high-resolution colour laser printing solutions. The unsurpassed 2400 dpi resolution will ensure that your printed labels will be as good or even better than labels printed on digital presses costing thousands of dollars—bright and expressive colours. Legible text. Highest quality barcodes and images.
Pantone® colour support is included for precise colour control. Additional profiles are available for different substrates.
Diversity of substrates
From thin paper to white and transparent polyester, the CX1200e gives you the maximum flexibility to use a variety of substrates. The wide range of matte, semi-matte and glossy materials will allow you to choose substrates that will suit the requirements and preferences of every customer. You can even print on specific substrates such as magnetic materials, vinyl and fabrics.
Impressive performance
Print speed is up to 5 meters per minute. You can print 500m in one print run, typically equivalent to a roll of media with a diameter of 305mm.
Additional information
| Manufacturer |
|---|
Technical features
| Print speed: | 83 mm/sec.; 5 m/min. |
| Print: | Colour |
| Display: | 4-line, 60 x 64 pixel, display with backlight |
| Printer’s processor: | 800/133 MHz |
| Material width: | 216 mm |
| Print width: | Up to 203 mm |
| Max. Print length: | Up to 610 mm (24 “) |
| Roll length: | Up to 500 metres with 305mm external label roll diameter
(Including label surface, glue and gaps)
|
| Substrate types: | Labels and films approved for use |
| Print quality modes: | 1200 dpi x 1200 dpi, 4800 colour quality (2400 x 600 dpi)
|
| Ink: | CMYK 4 colour print (cyan, magenta, yellow and black); 15000 sheets with extra capacity cartridges (measured according to ISO/IEC 19798 guidelines)
|
| Software: | PTPrint™ 8.0 RIP software for Windows OS;
Pantone colour supportuser-to-use user’s interface |
| Materials: | Maximum material roll diameter: 305 mm (12″); Roll core diameter: 76 mm (3″); IntelliTorque tension control system with automatic paper feed; Maximum material roll weight: 20 kg |
| Material after printing: | Maximum printed material roll diameter: 305 mm (12″); Roll core diameter: 76 mm (3″); IntelliTorque tension control system; Maximum printed material roll weight: 20 kg |
| OS: | Windows 7/8/10, 32-64 Bit |
| System parameters: | » Intel® Pentium®-based PC or similar, 2GHz processor or better » 2GB RAM or more » 50GB or more memory in HDD » VGA display with 1024 x 768 or higher resolution » 100/1000 Ethernet connection |
| Sizes: | Without bench: 193 cm (L) x 56 cm (H) x 56 cm (W) With bench: 193 cm (L) x 144 cm (A) x 76 cm (W) |
| Weight: | Without bench: ~116 kg With bench: ~207 kg |
| Operating environment: | Air temperature: 20-23°C Air humidity: 40-55%Height above sea level: 0 – 2000 metres |
| Power usage: | 220-240 VAC, 50/60 Hz
Standby mode: 35W |
| Certification: | CSA, ICES Class A, BSMI Class A, VCCI Class A,
FCC Class A, UL 60950-1, IEC 60320-1, CE Class A, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, C-tick mark Class A |
| Warranty: | One-year warranty. Usage restrictions may apply. |
| Additional options: | Warranty; Bench with a built-in, lockable compartment; Software and memory upgrades for high-volume printing |
