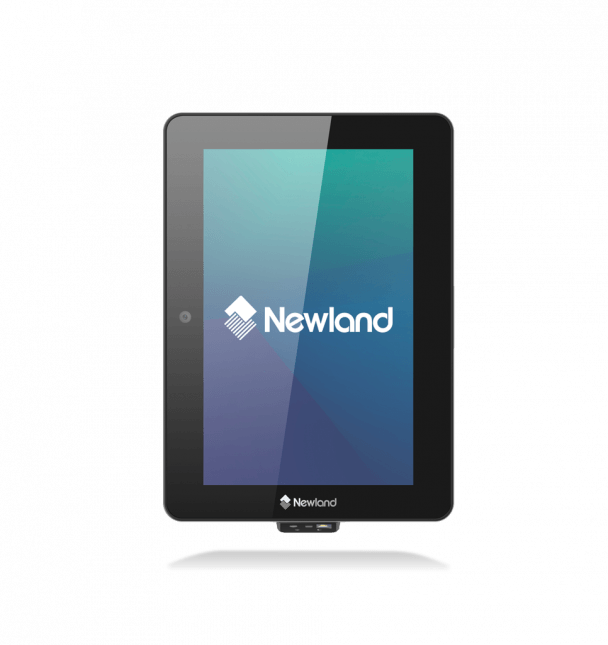

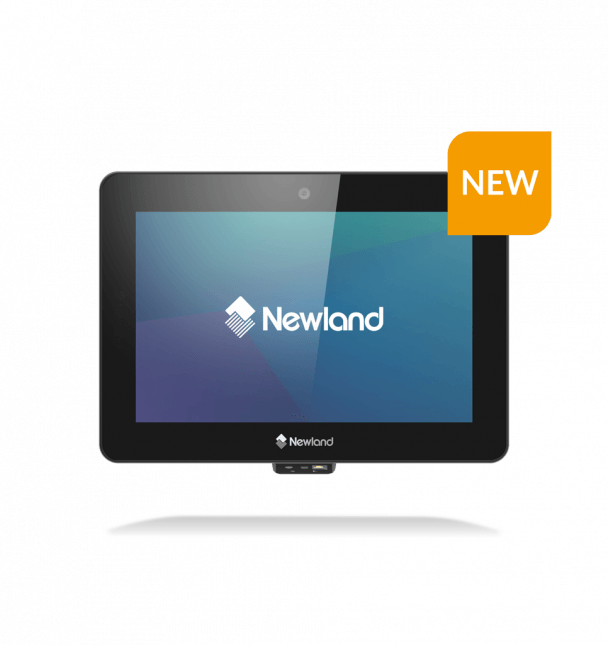

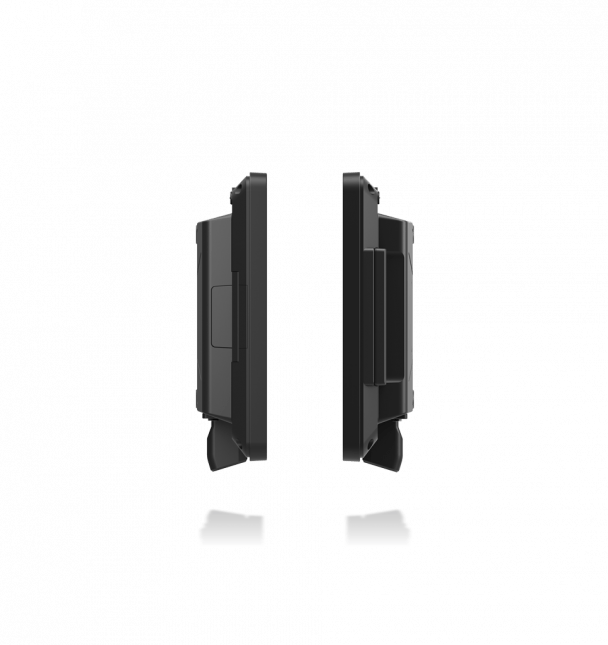

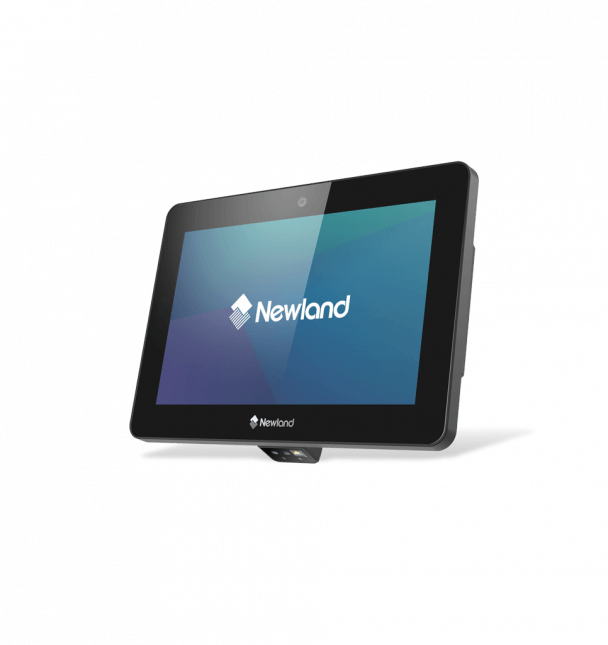

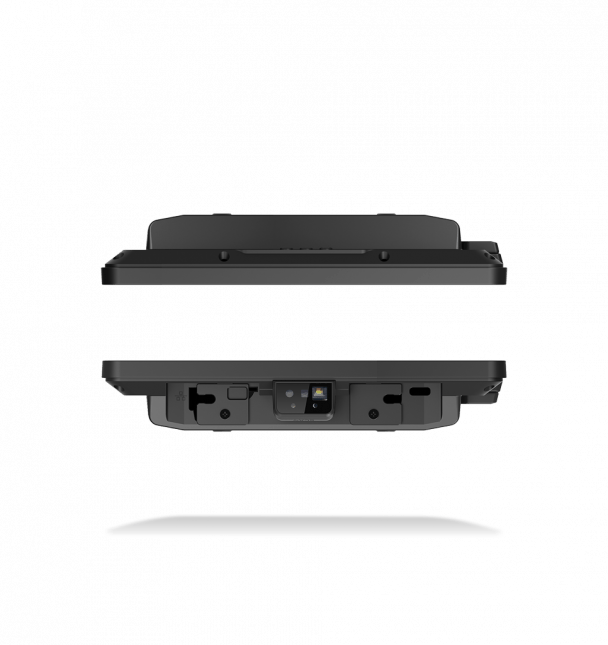

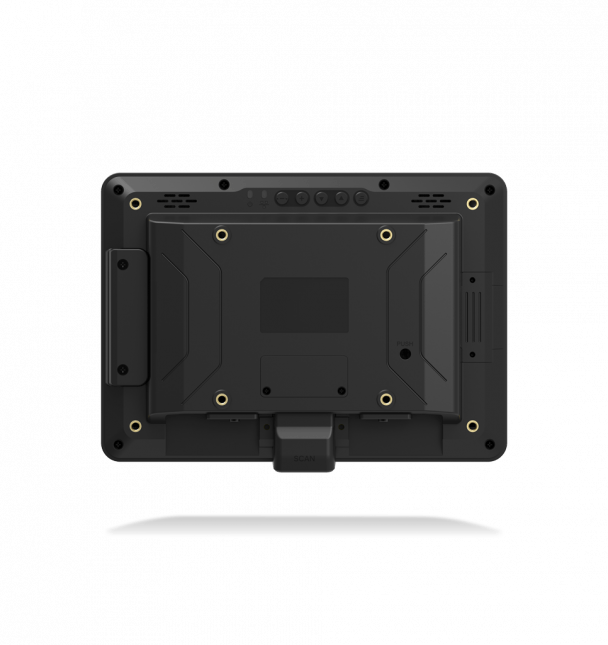

NQuire 750 Stingray II

Description

Enabling self-service is easy with NQuire 750 Stingray II! Its interactive 7″ touchscreen, various wireless options, and a megapixel scan engine make it a perfect device for table-top ordering, shelf labelling, and price-checking applications.

Technical features

1D: All major 1D symbologies
2D: All major 2D symbologies
Depth of Field EAN 13 (13mil): 70mm-610mm
Depth of Field Code 39 (5mil): 110mm-290mm
Depth of Field PDF417 (6.7mil): 110mm-230mm
Depth of Field DataMatrix (10mil): 110mm-260mm
Depth of Field QR (15mil): 55mm-410mm
Operating System: Android 13 GMS
Processor: 2.0GHz Octa-Core 64-bit Processor
Memory RAM: 4GB
Memory Flash: 64GB

Environment

Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 90% (non-condensing)
Electro Static Discharge (ESD): ±12kV (Air discharge), ±6kV (Direct discharge)
IP Rating: IP54 (front only)

Physical characteristics

AC Adapter: 12V@3A
Camera: Front camera: 8MP
Dimensions (mm): 185.9 (W) x 132.5 (H) x 32 (D) mm
Display: 7″ (1280×800), capacitive touch screen
Interfaces: 1 X USB Type-C, 1 X USB Type-A, 2 X GPIO, 1 X expansion slot, Ethernet RJ45, MicroSD Card support (up to 128GB)
Keypad: Up/down keys, Vol+/Vol-keys, Menu key
Modules: Built in 4G module
Notifications: Speaker and multicolour LEDs
PoE: RJ45 IEEE 802.3 af/at
Sensors: Gravity Sensor, Infrared Sensor
SIM: Nano+Nano/Nano+TF



Additional accessories

Optional: NFC module, MSR module

Technical characteristics

WWAN RADIO: 2G: 850/900/I800/1900MHz; 3G: WCDMA (B1, B2, B5, B8); CDMA: 1X EVDO (BC0); TD-SCDMA: B34/39; 4G: TDD-LTE (B34, B38, B39, B40,B41), FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)
WLAN RADIO: IEEE 802.11 a/b/g/n/ac, supports 2.4GHz and 5GHz dual frequency
WPAN RADIO: Bluetooth 5.2
NFC: 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID card reading, supports reader/writer modes. (optional NFC module is required)
