NQuire 1000 Manta III

Description

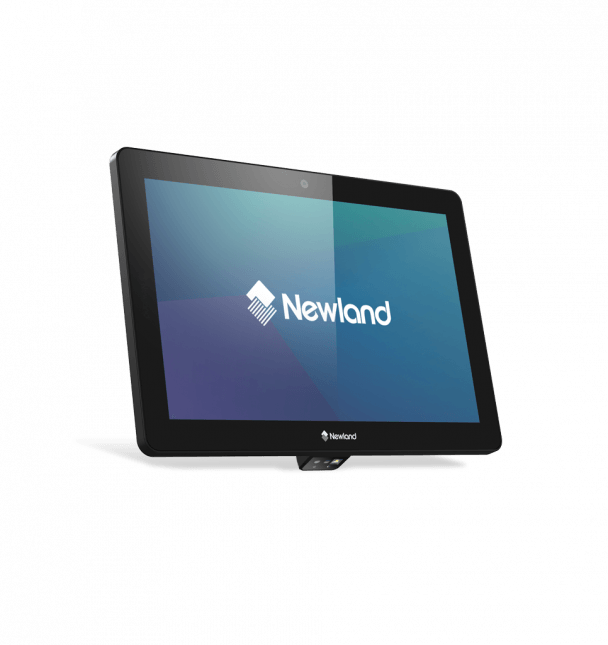

The NQuire 1000 Manta III micro kiosk offers a 10” touchscreen display for increased interactivity and user engagement. Equipped with the reliable Android 13, it provides a feature-rich and familiar environment for third-party and custom-made apps. The NQuire 1000 Manta III is built on Android 13, allowing for easy development of custom applications tailored to your needs. Due to its size, the Manta III is ideally suited for shelf mounting or on-counter usage in department stores, supermarkets, small grocery stores, pharmacy/cosmetic stores, tobacco kiosks, and more.

Technical features

1D: All major 1D symbologies
2D: All major 2D symbologies
Depth of Field EAN 13 (13mil): 70mm-610mm
Depth of Field Code 39 (5mil): 110mm-290mm
Depth of Field PDF417 (6.7mil): 110mm-230mm
Depth of Field DataMatrix (10mil): 110mm-260mm
Depth of Field QR (15mil): 55mm-410mm
Operating System: Android 13 GMS
Processor: 2.0GHz Octa-Core 64-bit Processor
Memory RAM: 4GB
Memory Flash: 64GB

Software

MDM (certified): Ndevor

Environment

Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 90% (non-condensing)
Electro Static Discharge (ESD): ±12kV (Air discharge), ±6kV (Direct discharge)
IP Rating: IP54 (front only)

Physical characteristics

AC Adapter: 12V@3A
Camera: Front camera: 8MP
Dimensions (mm): 251.7 (W) × 173.5 (H) × 32 (D) mm
Display: 10.1”(1280 X 800), capacitive touch screen
Interfaces: 1 X USB Type-C, 1 X USB Type-A, 2 X GPIO, 1 X expansion slot, Ethernet RJ45, MicroSD Card support (up to 128GB)
Keypad: Up/down keys, Vol+/Vol-keys, Menu Key
Modules: Built in 4G module
Notifications: Speaker and multicolour LEDs
Power over Ethernet: RJ45 IEEE 802.3 af/at
Sensors: Gravity Sensor, Infrared Sensor
SIM: Nano+Nano/Nano+TF
WWAN RADIO: 2G: 850/900/1800/1900MHz; 3G: WCDMA (B1, B2, B5, B8); CDMA:1X EVDO (BC0); TD-SCDMA: B34/39; 4G: TDD-LTE(B34,B38, B39, B40, B41), FDD-LTE(B1, B2, B3, B5, B7, B8, B20, B28 a&b)
WLAN RADIO: IEEE 802.11 a/b/g/n/ac, support 2.4G and 5G dual frequency
WPAN RADIO: Bluetooth 5.2
NFC: 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID card reading, supports reader/writer modes. (optional NFC module is required)
GPS: GPS(AGPS), GLONASS, Beidou, Galileo

Additional accessories

Optional: NFC module, MSR module
